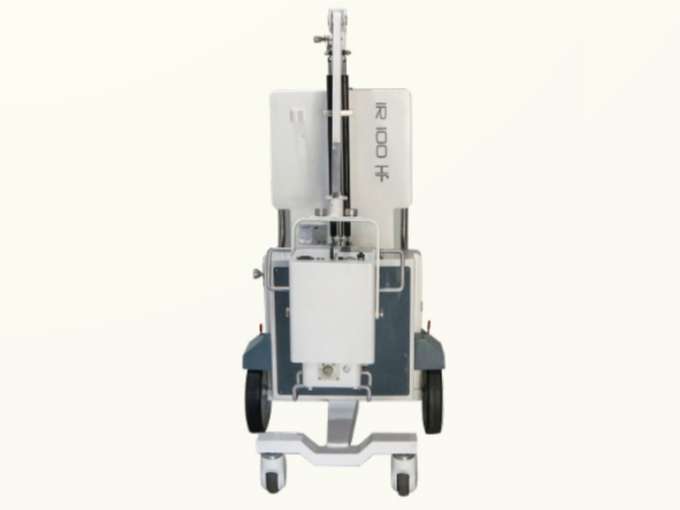

INDORAY Radiographic X-ray Mobile High Frequency 100 / IRM (IR100HF)

UNIT
Power Input : Single Phase 220 VAC ± 10%
Power Consumption : 3500 Watt / 3,5 kW
Frequency Range Input : 50/60 Hz
Movement : Manual

GENERATOR
Max. Power : 5,6 kW, high Frequency
Tube Voltage : 40-125 kV
mA Range : 5-100 mA
Exposure Time : 0,001-10 sec
mAs Range : 0,1-320 mAs
Min. Working Frequency : 80 kHz-200 kHz

X-RAY MONOBLOK
Anoda Heat Contact : 30 kJ
Focal Spot (focus size) : 0.6 / 1.8
Target Angle : 15°
Weight : 13± 0.5 kg

USER INTERFACE
Controller : Laptop Touchscreen
APR : More Than 650 Pre-Programable Setting (APRs)
Switch Expose : Handswitch / Wireless Remote
